For an automatic weather response, JIAKE can supply a combined wind and rain sensor. When wind or rain is detected, it can automatically close the roof louvers and lower compatible motorized windproof roller blinds.
- Closed louvers protect against overhead rain.
- Integrated gutters and drainage posts manage roof runoff.
- Motorized windproof roller blinds protect selected sides.
- One combined sensor can control both louvers and compatible roller blinds.
How much rain protection can a louvered pergola provide?
The level of protection depends on the direction of the rain, installation type and whether side enclosures are included.
| Condition | Expected performance | Recommended configuration |
|---|---|---|
| Light, steady or heavy rain | Closed louvers provide effective overhead protection, while collected water is discharged through the integrated drainage system. | Confirm pergola dimensions and drainage-post arrangement. |
| Wind-driven rain | Angled rain can enter through an open side. | Add motorized windproof roller blinds. |
| Automatic response required | The pergola responds without immediate manual operation. | Add a combined wind and rain sensor. |
| Wall-mounted installation | Protection also depends on the building connection. | Complete wall sealing and flashing correctly. |
| Semi-enclosed area | The roof and selected sides can be protected together. | Combine louvers with roller blinds or other enclosures. |

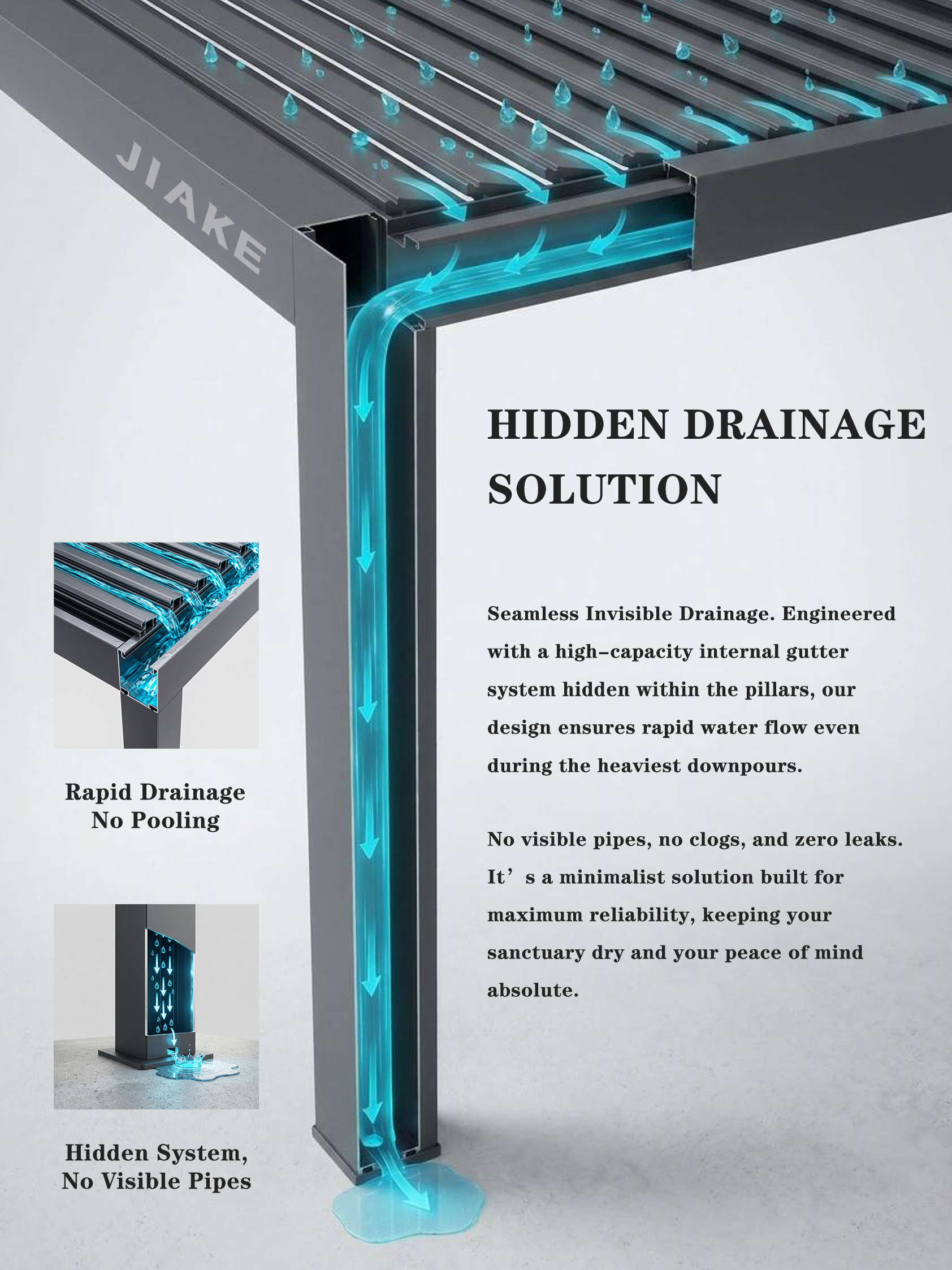

How does a louvered pergola drain rainwater?
The roof louvers, frame gutters and drainage posts form one connected system.
1. Closed louvers collect the rain
When the motorized roof closes, the louvers connect tightly to form a protective surface and guide water toward the drainage channels.
2. Louver channels direct the water
The profile of each louver carries collected rainwater toward the surrounding frame.
3. Integrated gutters receive the runoff
Hidden gutters inside the frame collect water while preserving the pergola's clean external appearance.
4. Drainage posts discharge the water
Water flows into internal channels inside designated posts, exits near ground level and continues into the planned site drainage area.
The system ends at the post outlet. Paving slopes and external drainage should direct discharged water away from the post bases and nearby buildings.

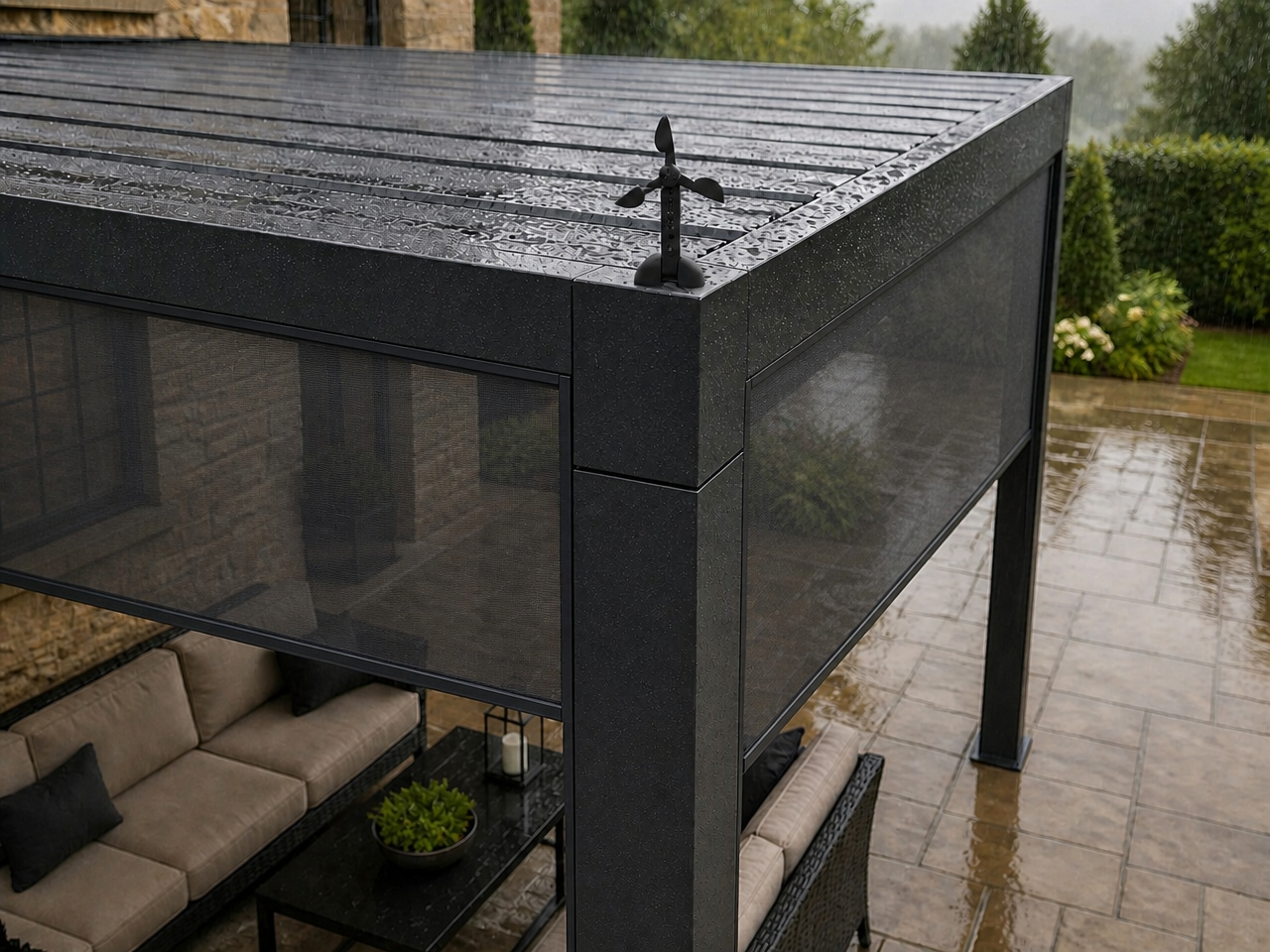

Automatic protection with a combined wind and rain sensor
A motorized JIAKE pergola can be equipped with one optional sensor that monitors both wind and rainfall.
- Automatically close the roof louvers. The closed roof prevents overhead rain from entering through the joints and directs water into the drainage system.
- Automatically lower motorized windproof roller blinds. When compatible blinds are included, the same sensor lowers them to protect selected sides.
The combined wind and rain sensor is a reliable and effective upgrade for residential and commercial pergolas. It lets the roof and compatible side protection respond together without immediate manual operation.
Five details that support reliable rain protection
1. Closely connected louvers
The louver profiles meet tightly when the roof closes, preventing water from entering through the joints when correctly assembled and installed.
2. Integrated frame gutters
Gutters inside the aluminum frame collect runoff from the roof and direct it toward selected drainage posts.
3. Internal post drainage
Internal channels keep most of the water route hidden. Post outlets should be considered when planning foundations and paving.
4. Accurate installation
Beams, posts, louvers and motors must follow the supplied product information to support proper closure and drainage.
5. Correct building connections
A wall-mounted pergola requires suitable sealing and flashing for the existing wall and local installation conditions.
Heavy and wind-driven rain
With the roof fully closed, water is kept above the covered area and directed into the drainage system. An open-sided pergola cannot block rain travelling horizontally beneath the roof. Motorized windproof roller blinds cover selected sides; when connected to the combined sensor, the louvers close and compatible blinds lower automatically.
For areas with strong wind, heavy rainfall or snow, continue with our high-wind guide and snow-load guide.
Freestanding or wall-mounted: what changes?
JIAKE manufactures both configurations. The roof and drainage principles remain the same, but site connections differ.
| Consideration | Freestanding | Wall-mounted |
|---|---|---|
| Support | Independent posts and foundations | Connected to a building on one side |
| Water discharge | Through designated posts | Through available designated posts |
| Installation focus | Foundations, post positions and ground drainage | Wall connection, sealing, flashing and drainage |
| Information required | Ground photos, dimensions and outlet direction | Wall photos, wall material, roof edge and dimensions |
What should you send before ordering?
Complete architectural drawings are not required for an initial enquiry. Send:
- Country and city
- Approximate width, depth and height
- Freestanding or wall-mounted preference
- Site photos or drawings
- Ground and wall materials
- Preferred drainage direction
- Quantity and application
- Sensor, roller-blind and enclosure requirements
- Preferred frame and blind colours
What will you receive from JIAKE?
Our factory team can prepare an initial recommendation covering the pergola type, dimensions, modular layout, drainage-post arrangement, motor and control system, optional sensor, roller blinds, other enclosures, and available drawings and technical documents.
JIAKE directly supplies aluminum pergola systems to homeowners, dealers, importers and contractors. Foundations, wall preparation, sealing, electrical connections and external drainage must be completed correctly during local installation.
Frequently asked questions
Are JIAKE louvered pergolas waterproof?
Yes. When correctly installed and fully closed, the closely connected roof louvers prevent rainwater from entering through the roof joints.
Can rain enter from the sides?
Wind-driven rain can enter through an open side. Motorized windproof roller blinds can be added for greater side protection.
Can the pergola respond automatically to wind and rain?
Yes. An optional combined wind and rain sensor detects either condition and automatically closes the motorized roof louvers.
Can the same sensor control the windproof roller blinds?
Yes. When compatible motorized windproof roller blinds are installed, the same sensor can automatically lower them when wind or rain is detected.
Can a louvered pergola be mounted against a wall?
Yes. JIAKE supplies freestanding and wall-mounted configurations. A wall-mounted installation requires suitable wall conditions and correct sealing and flashing at the connection.
Can I request a product recommendation without architectural drawings?
Yes. Send JIAKE your project location, approximate dimensions and clear site photographs. These are sufficient for an initial product review.
Get a pergola configuration for your project.
Send your location, dimensions, installation type, quantity and site photos. JIAKE directly supplies homeowners, dealers, importers, contractors and commercial projects.
